# Solving miracle sudokus with z3

## Introducing the Miracle Sudoku

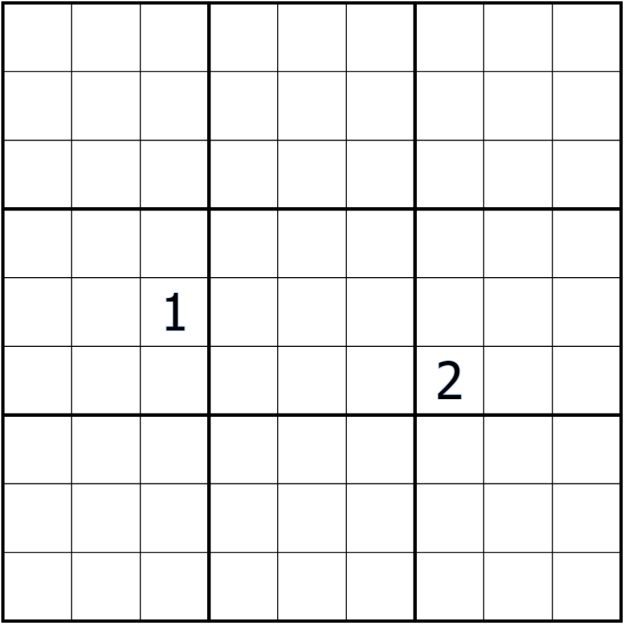

You are given a sudoku puzzle with these given digits and the following constraints:

• All the standard sudoku rules apply
• Any two cells separated by a knight's move or a king's move (in chess) cannot contain the same digit
• Any two orthogonally adjacent cells cannot contain consecutive digits

Is it possible to solve with a unique solution without resorting to bifurcation (guessing)?

The surprising answer to all-of-the-above is "yes." If you'd like to see the logical deductions a human makes to get there, you can watch the video below:

When I watched the video, I was mesmerized. It was such a beautiful puzzle and required such a spectacular display of logical thinking to work through. Shortly after, I wanted to solve a similar puzzle myself! Unfortunately, there weren't any other instances of this kind of puzzle in the wild (at least, this was true when the video was released).

So, I was stuck.

Or was I?

## Computer Science to the Rescue

We're really looking for an instance of this puzzle that can be uniquely solved and has as few clues as possible. Maybe we can write a program to do this for us.

Sometimes it's best to start off with some pseudocode that sketches out the rough idea of what we want to do.

``````solution := find_any_solution()

for i from 1 to 9x9:
for each combination of i cells from solution:
grid := a 9x9 grid only including the cells in combination
if count_solutions(grid) == 1:
return grid
``````

Now, let's turn this into actual code. We'll start with the straightforward stuff and hold off (for now) on the more challenging problems.

``````import itertools

# Find any solution finds a solution to the puzzle using the given starting grid and without matching any of the grids
# in restrictions. It will return the solution grid if there is one, or None if there is no solution.
def find_any_solution(grid, restrictions=[]):
pass

# Counts the number of unique solutions to the puzzle from the given starting grid.
def count_solutions(grid):
i = 0
restrictions = []
while True:
solution = find_any_solution(grid, restrictions)
if not solution:
return i
restrictions.append(solution)
i = i + 1

# Returns an iterable of grids that have a portion of the given solution filled out, ordered by how many cells are given.
def grids_for_solution(solution):
positions = [(row, col) for row, col in itertools.product(range(9), range(9))]
for length in range(1, 9 * 9):
for combo in itertools.combinations(positions, length):
grid = [[0 for col in range(9)] for row in range(9)]
for row, col in combo:
grid[row][col] = solution[row][col]
yield grid

# Prints the given grid to the console
def print_grid(grid):
for row in grid:
print(''.join(str(col) for col in row))

# Creates a puzzle for us
def create_puzzle(restrictions=[]):
# Find a solution to this puzzle with the given restriction
solution = [[0 for col in range(9)] for row in range(9)]
solution = find_any_solution(solution, restrictions)

# Find and print out the puzzle
for grid in grids_for_solution(solution):
if count_solutions(grid) == 1:
print_grid(grid)
break
``````

Excellent! However, we still need to write the method to find a solution for a given grid. But this should be easy because computers are great at solving sudoku.

Kind of.

Actually, they're pretty bad at it. Sudoku is a classic example of an NP-complete problem where it's fast to check if a solution is correct but slow to find a solution. In the worst case, even a moderately-sized sudoku grid would be out-of-reach for even the world's fastest supercomputers to solve in a reasonable amount of time. But at the grid sizes that humans play at (9x9), it's child's play.

Sudoku is NP-complete, but is that still the case with the new rules?

That's a good question. Indeed, for checking a solved grid, the additional rules are still in P. In the worst case, the puzzle is still NP-complete. It may actually even be easier!

## Building the program

Once you know you're stuck on an NP-complete problem, things actually get a bit easier. There are many backtracking algorithms that one can use: one, in particular, is Algorithm X.

However, we're going to take advantage of the fact that the puzzle can be treated as a SAT problem and use the Z3 library.

Basically, we want to describe a bunch of constraints (the rules of our puzzle) to the SAT solver (Z3) and then ask it to find a solution.

With that info, let's start fleshing out the code for `find_any_solution`.

``````from z3 import *

# Create solver
s = Solver()

# Create a 9x9 grid of integers
cells = [[Int("%s_%s" % (row+1, col+1)) for col in range(9)] for row in range(9)]

# Every cell contains an integer between 1 and 9
s.add([And(1 <= cells[row][col], cells[row][col] <= 9) for row, col in itertools.product(range(9), range(9))])
``````

Now, we can add the standard Sudoku rules to the solver.

``````# Row constraints (each cell in a row must contain 1-9 distinctly)
s.add([Distinct(cells[row]) for row in range(9)])

# Add column constraints (each cell in a column must contain 1-9 distinctly)
s.add([Distinct([cells[row][col] for row in range(9)]) for col in range(9)])

# Add group constraints (each of the 9 3x3 sections must contain 1-9 distinctly)
for row in range(0, 9, 3):
for col in range(0, 9, 3):
s.add(Distinct([cells[col+i][row+j] for i, j in itertools.product(range(3), range(3))]))
``````

And, finally, the new rules.

``````# Cells separated by a king's move (in chess) cannot contain the same digit
king_moves = [(i, j) for i in (-1, 0, 1) for j in (-1, 0, 1) if i != 0 or j != 0]
for row, col in itertools.product(range(9), range(9)):
moves = [cells[row+i][col+j] for i, j in king_moves if row + i in range(9) and col + j in range(9)]
s.add(And([cells[row][col] != cell for cell in moves]))

# Cells separated by a knight's move (in chess) cannot contain the same digit
knight_moves = [(i, j) for i in (-2, -1, 1, 2) for j in (-2, -1, 1, 2) if abs(i) + abs(j) == 3]
for row, col in itertools.product(range(9), range(9)):
moves = [cells[row+i][col+j] for i, j in knight_moves if row + i in range(9) and col + j in range(9)]
s.add(And([cells[row][col] != cell for cell in moves]))

# Orthogonally adjacent cells cannot contain consecutive digits
orthogonal_moves = [(i, j) for i in (-1, 0, 1) for j in (-1, 0, 1) if abs(i) + abs(j) == 1]
for row, col in itertools.product(range(9), range(9)):
moves = [cells[row+i][col+j] for i, j in orthogonal_moves if row + i in range(9) and col + j in range(9)]
s.add(And([cells[row][col] - 1 != cell for cell in moves]))
s.add(And([cells[row][col] + 1 != cell for cell in moves]))
``````

We also want to include the givens from `grid` in our constraints and exclude the grids given in `restrictions`.

``````# The solution has to use our existing grid clues
for row, col in itertools.product(range(9), range(9)):
if grid[row][col] != 0:

# The solution cannot match our restricted grids
for excluded_grid in restrictions:
s.add(Not(And(([cells[row][col] == excluded_grid[row][col] for row, col in itertools.product(range(9), range(9))]))))
``````

Finally, we're ready for the solver to find a solution and return it.

``````# Return the solution
if s.check() != sat:
return None
result = [[0 for col in range(9)] for row in range(9)]
m = s.model()
for row, col in itertools.product(range(9), range(9)):
result[row][col] = int(str(m.evaluate(cells[row][col])))
return result
``````

Great! Now, we have everything we need to solve the puzzle.

First, for curiosity's sake, let's find out how many solutions exist to this kind of puzzle.

``````starting_grid = [[0 for col in range(9)] for row in range(9)]
print(f"There are {count_solutions(starting_grid)} solutions to this puzzle.")
``````

We end up getting 72 total solutions for this puzzle! Not many at all. These rules are very restrictive, as it turns out.

Finally, let's actually generate a puzzle:

``````# Exclude the original Miracle Sudoku solution
restrictions = [[
[4, 8, 3, 7, 2, 6, 1, 5, 9],
[7, 2, 6, 1, 5, 9, 4, 8, 3],
[1, 5, 9, 4, 8, 3, 7, 2, 6],
[8, 3, 7, 2, 6, 1, 5, 9, 4],
[2, 6, 1, 5, 9, 4, 8, 3, 7],
[5, 9, 4, 8, 3, 7, 2, 6, 1],
[3, 7, 2, 6, 1, 5, 9, 4, 8],
[6, 1, 5, 9, 4, 8, 3, 7, 2],
[9, 4, 8, 3, 7, 2, 6, 1, 5]
]]
create_puzzle(restrictions)
``````

As an example output, we get:

``````020000000
000000000
000000000
000000000
000080000
000000000
000000000
000000000
000000000
``````

With the rules, there's a unique solution to this puzzle! The question is -- can you solve it? :)

## An extra challenge

While Z3 is convenient, it isn't always fast. The program above didn't run very quickly on my machine. Switching from using a 9x9 array of ints to a 9x9x9 array of booleans provided a significant speed boost, and parallelizing the search helped as well.

This article was posted on 2022-03-09. Details may have changed since publication. Please contact me if you have concerns about accuracy or any questions.
